Rotary Valve ZXQ

Get in touch about this offering

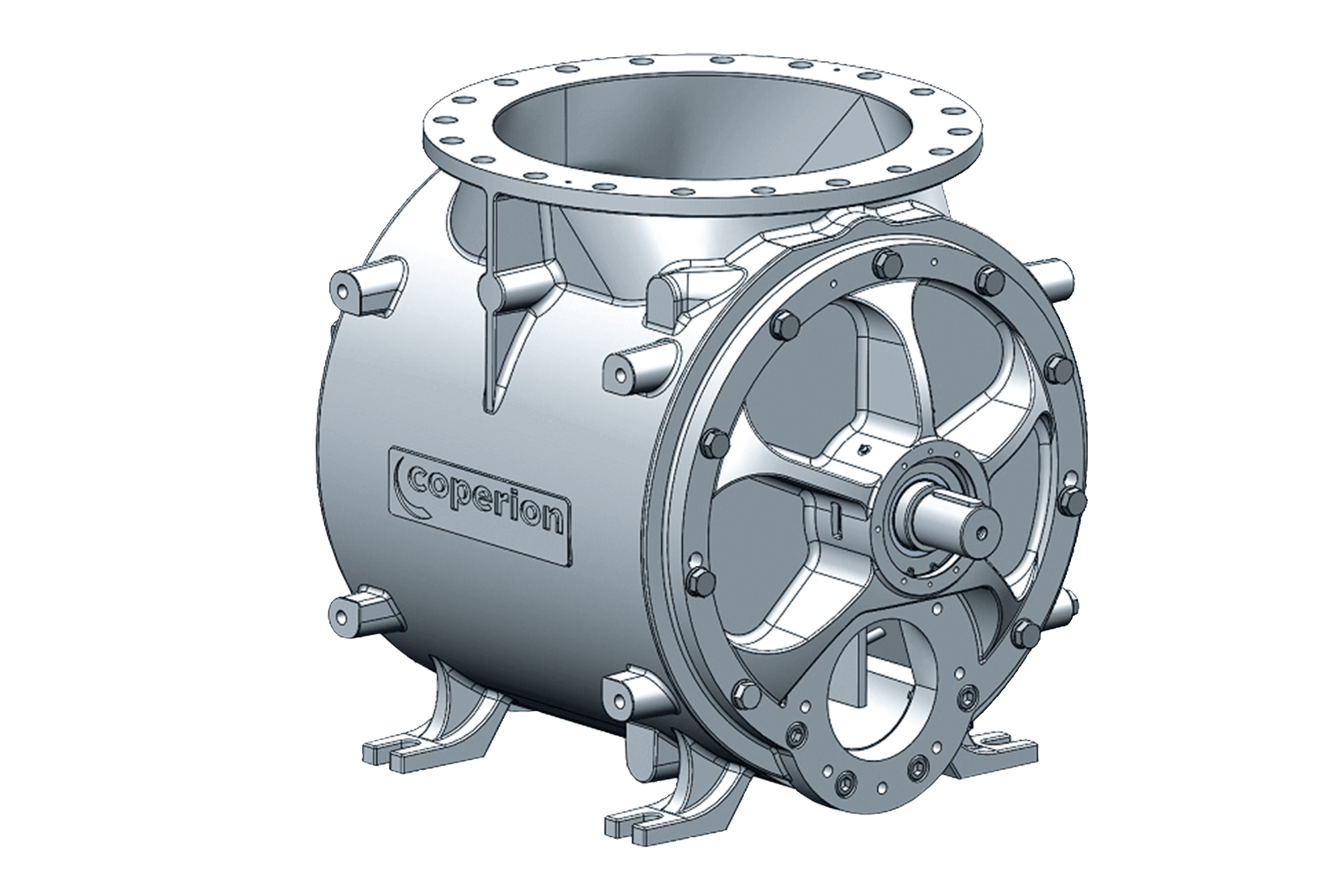

High-pressure Blow-through Rotary Valve For Powders

Introducing our high-pressure blow-through rotary valve, expertly engineered for optimal performance in handling powders. This innovative valve ensures maximum product capacities while maintaining minimal gas leakage rates, making it an ideal solution for feeding bulk materials into pneumatic conveying systems. With the ability to operate at pressures of up to 3.5 barg (51 psi), our rotary valve is designed to enhance efficiency and reliability in your material handling processes. Experience the difference in quality and performance with our state-of-the-art technology tailored for your industrial needs.

Main features

  • Pressure range
    3.5 barg (51 psi) system and differential pressure
  • Pressure surge proof
    10 barg (145 psi), due to heavy duty design
  • Low maintenance
    Open end high pressure rotor with 14 pockets for low leakage gas rates
  • Large inlet
    Without restriction of the cross section for highest capacities
  • Outboard bearings
    Separated from product by purged seal arrangement and drop out opening
  • Blow-through channel
    Optimal pocket sweeping at low pressure drop

Related Industries

  • Plastics
  • Chemicals
  • Food & Pet Food
  • Minerals

Options and Accessories

  • Chamfered blades
  • Heated housing
  • DUROPROTECT wear protection





Designed For Optimal Results

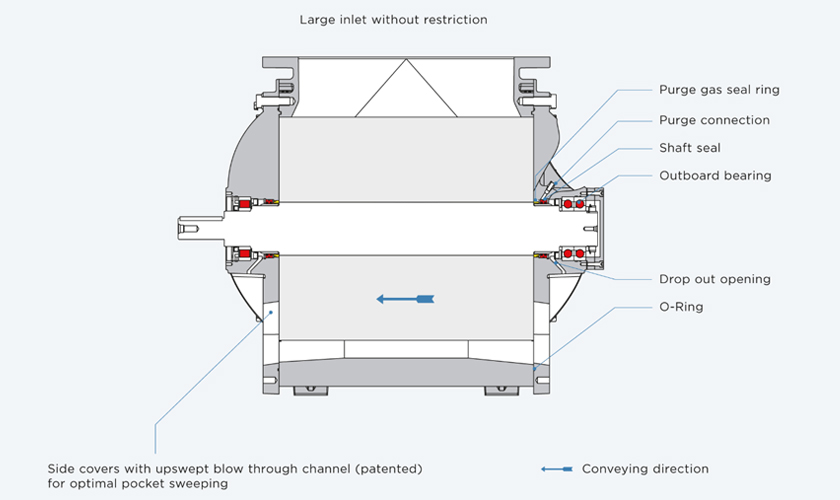

The ZXQ is engineered to optimize the feeding of high product capacities into pneumatic conveying systems, capable of operating at pressures of up to 3.5 bar. This innovative device features a premium sealing system that incorporates double shaft seals and a labyrinth ring designed for effective gas purging, ensuring maximum efficiency and reliability. The valve is equipped with outboard bearings and a dedicated drop-out opening, allowing for straightforward detection of gasket failures without disrupting the product area. Additionally, its unique 14-chamber open-end Q-Rotor is specifically tailored for powder applications in high-pressure environments, complemented by a blow-through channel that guarantees optimal pocket sweeping for enhanced performance. Experience unparalleled efficiency and reliability with the ZXQ, the ideal choice for your pneumatic conveying needs.

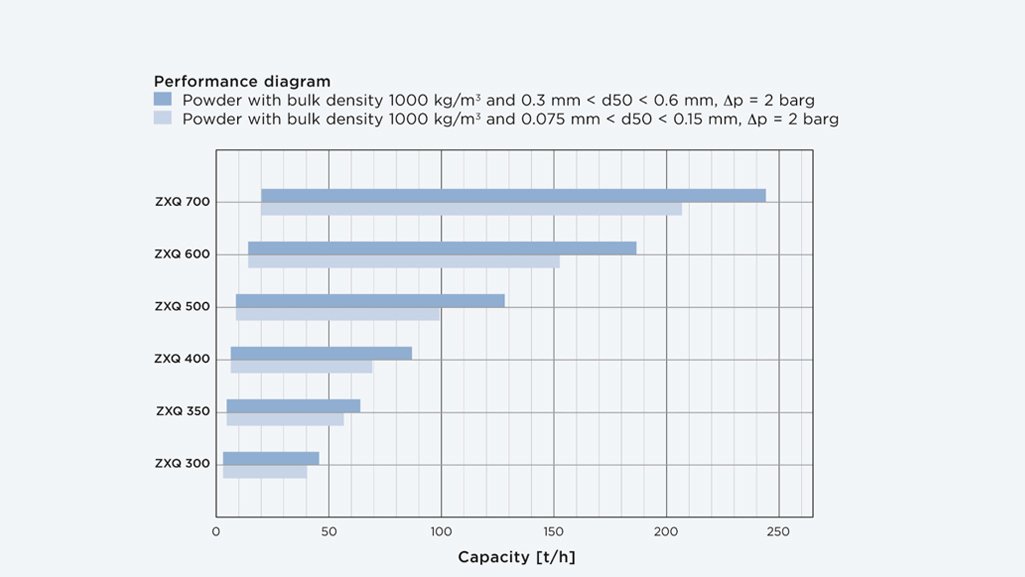

ZXQ Performance Diagram
