Two-Way Diverter Valve WEK

Want to find out more about this offering?

Precision-engineered WEK diverter valve: compact, reliable, and built for seamless product flow up to 6 barg.

Download large image

Single Channel Diverter Valve for Granular Products

The precision-engineered WEK Single Channel Diverter Valve is compact, reliable, and purpose-built to ensure seamless product flow in demanding bulk material handling environments. Its spherical design with a 45° outlet enables smooth redirection of granular products while allowing installation in both pneumatic conveying systems and gravity pipes at operating pressures of up to 6 barg. Engineered for efficiency and durability, this diverter valve provides space-saving integration without compromising performance or cleanability.

MAIN FEATURES

Pressure Range
6 barg (87 psi) sysem and differential pressure
Pressure Surge Proof (Optional)
10 barg (145 psi) due to heavy duty design
Operation Temperature
-20°C up to 100°C
Application
Suitable for fluid group 2 according PED (fluid group 1 on demand)
Seal configuration
Seal free, tight clearance between rotor and housing
Material of Construction
Cast aluminium, product wetted parts hard coated

Related Industries

Plastics
Food & Pet Food

WEK Product Sheet

Access the comprehensive product sheet for the WEK diverter valve to review its specifications, features, and operational benefits. Gain the technical insights needed to evaluate its suitability for your application.

PRODUCT SHEET

Engineered for accuracy and long-term durability, the WEK Diverter Valve guarantees stable operation and clean product routing in high-demand processing environments.

Focus on Switching Precision and Rotor Design

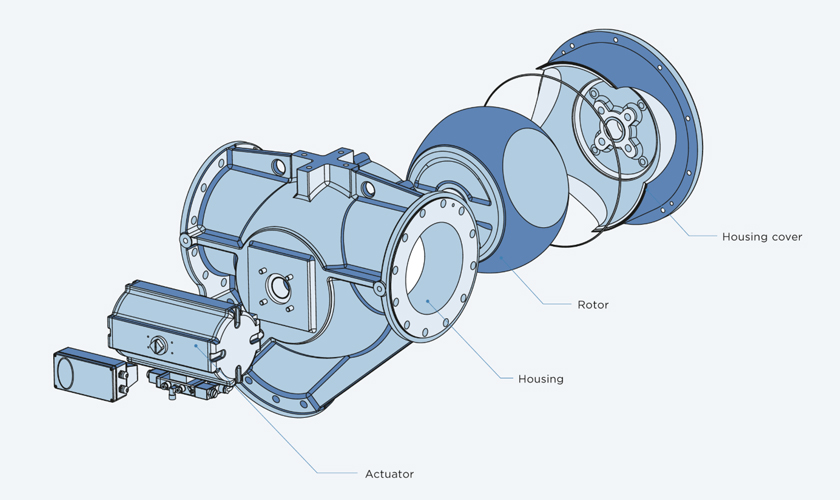

A key advantage of the WEK diverter valve lies in its advanced rotor concept. The spherical rotor, developed in the robust K-Execution, allows switching even during active product flow, ensuring uninterrupted conveying processes. The design features a seal-free interface between the rotor inlet/outlet and the housing, maintained through tight precision clearances to ensure consistent performance with minimal wear. For applications requiring enhanced protection, an optional cross seal between the outlets is available. This combination of intelligent engineering and high-precision manufacturing makes the WEK Single Channel Diverter Valve an optimal solution for reliable, contamination-free flow control.
