Two-Way Diverter Valve WET

Single-channel diverter valve designed for smooth, reliable redirection of granular products up to 6 barg.

Download large image

Single Channel Diverter Valve for Granular Products

Our single-channel diverter valve features a robust spherical design with a precise 90° outlet, engineered to ensure smooth, contamination-free redirection of granular products. Built for reliable operation in pneumatic conveying lines up to 6 barg, it delivers exceptional durability and flow efficiency across demanding applications in the plastics, food and minerals industries. Designed for easy integration and minimal maintenance, this diverter valve provides a dependable solution for accurate product routing in modern bulk-handling systems.

MAIN FEATURES

Pressure Range
6 barg (87 psi) system and differential pressure
Pressure Surge Proof (Optional)
10 barg (145 psi) due to heavy duty design (on request)
Operation Temperature
-20°C up to 100°C
Application
Suitable for fluid group 2 according PED (fluid group 1 on demand)
Seal Configuration
Seal free, tight clearance between rotor and housing
Material of Construction
Cast aluminium, product wetted parts hard coated

Related Industries

Plastics
Food & Pet Food

WET Product Sheet

Access the comprehensive product sheet for the WET diverter valve to review its specifications, features, and operational benefits. Gain the technical insights needed to evaluate its suitability for your application.

PRODUCT SHEET

Compact single-channel design with patented K-seal for reliable, leak-free performance.

Compact, Lightweight Design With Patented Sealing Technology

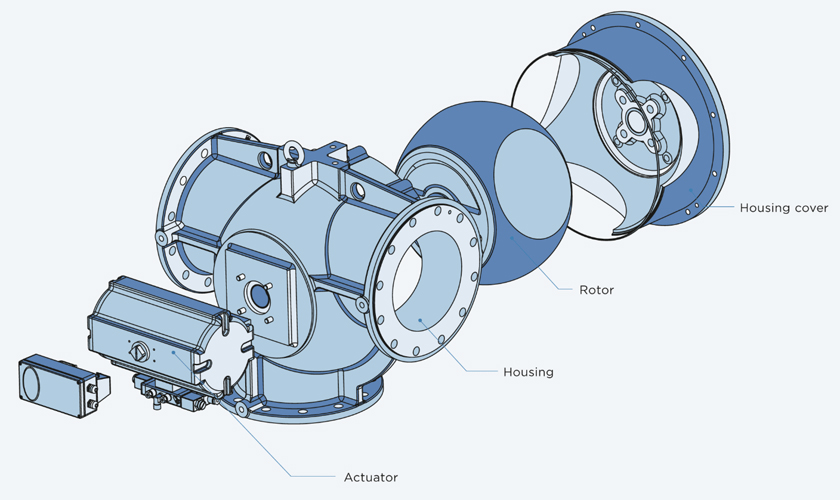

The WET diverter valve stands out with its exceptionally compact construction, made possible by its single conveying channel design. Manufactured from high-quality cast aluminum, it offers a remarkably low weight that simplifies installation and reduces overall system load. At the core of its performance is a patented K-seal pipe seal, ensuring a highly reliable, leak-free connection between the housing and the rotating element. The symmetrical aluminum rotor, engineered in T-execution, guarantees smooth product flow and long-lasting operational stability.
