Two-Way Diverter Valve WGV

Want to find out more about this offering?

Symmetrical diverter valve for precise distribution in gravity-fed systems up to 1 barg.

Download large image

Single Channel Diverter Valve for Powders and Granular Products

The WGV diverter valve features a symmetrical design, providing reliable and precise distribution of powders and granular materials in gravity-fed systems. Designed for operation at up to 1 barg, it ensures smooth, even flow with minimal maintenance. Ideal for low-pressure applications, the WGV offers dependable performance and easy integration into compact gravity pipe layouts.

MAIN FEATURES

Pressure Range
1 barg (15 psi) system pressure
Operation Temperature
-20°C up to 100°C
Application
Suitable for fluid group 2 according PED (fluid group 1 on demand)
Seal Configuration
Cross seals on rotor between the outlets
Material of Construction
Cast aluminium

Related Industries

Plastics
Chemicals
Food & Pet Food

WGV Product Sheet

Access the comprehensive product sheet for the WGV diverter valve to review its specifications, features, and operational benefits. Gain the technical insights needed to evaluate its suitability for your application.

PRODUCT SHEET

Optional high-temperature execution for demanding low-pressure applications.

Reliable Gravity Distribution with High-Performance Sealing

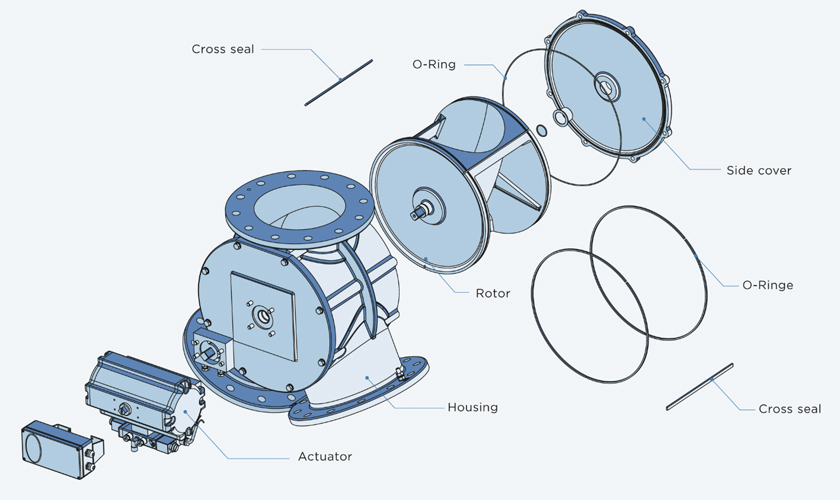

The WGV diverter valve excels in distributing powders and granular materials in gravity-fed systems at up to 1 barg. It is optionally available in a high-temperature execution for more demanding processes. A cross seal on the rotor between the two outlets ensures leak-free operation, while the single-channel, cylindrical, and symmetrical design in V-Execution provides smooth, precise flow and minimal maintenance. This robust construction makes the WGV a dependable solution for efficient material distribution in low-pressure gravity pipelines.
