Two-Way Diverter Valve WHK

Want to find out more about this offering?

WHK diverter valve engineered for tight conveying lines and gravity-fed systems.

Download large image

Compact Single Channel Diverter Valve out of Stainless Steel for Powders and Granular Products

The WHK diverter valve features a sealed rotor with a 45° outlet, providing reliable and precise product routing in compact installations. Designed for use in pneumatic conveying lines or gravity-fed systems up to 3 barg, it combines space-saving design with dependable performance. Ideal for handling powders and granular materials, the WHK ensures minimal leakage, smooth operation, and easy integration into tight conveying layouts.

MAIN FEATURES

Pressure Range
3 barg (43 psi) system and differential pressure
Operation Temperature
-20°C up to 100°C
Application
Suitable for fluid group 2 according PED (fluid group 1 on demand)
Seal Configuration
Endless wrap-around seal
Material of Construction
Stainless Steel

Related Industries

Plastics
Chemicals
Food & Pet Food

WHK Product Sheet

Access the comprehensive product sheet for the WHK diverter valve to review its specifications, features, and operational benefits. Gain the technical insights needed to evaluate its suitability for your application.

PRODUCT SHEET

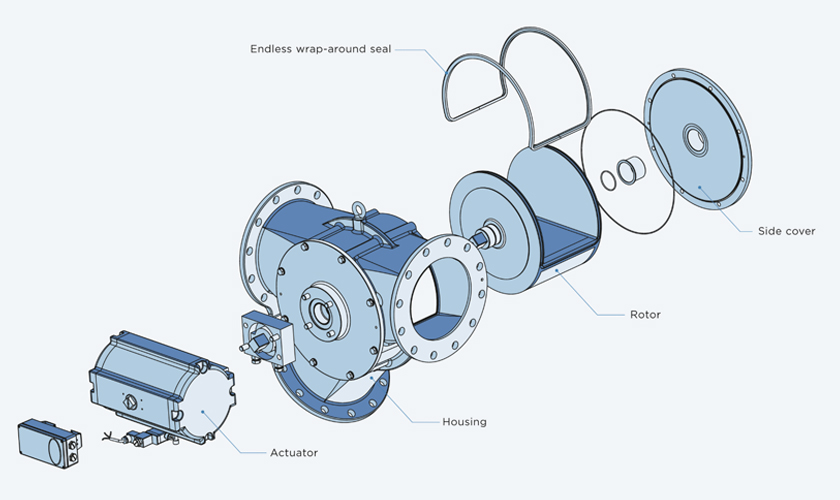

Space-saving design with sealed rotor and 45° outlet for reliable product routing.

Compact, Sealed Design for Efficient and Reliable Product Routing

The WHK diverter valve stands out for its space-saving design, making it ideal for installation in compact conveying lines or gravity-fed systems up to 3 barg. Specially executed for PTA and CTA applications, it ensures reliable operation even in demanding chemical processing environments. Featuring an endless wrap-around seal, this single-channel, cylindrical diverter with a sealed rotor and 45° outlet in K-Execution provides precise, leak-free product routing while minimizing maintenance and maximizing operational efficiency.
