Two-Way Diverter Valve WYK

Want to find out more about this offering?

WYK diverter valve engineered for easy cleaning, smooth product flow, and reliable switching.

Download large image

Stainless Steel Diverter Valve for Powders and Granular Products

The WYK diverter valve features a hygienic conical design that enables effortless dismantling, fast cleaning, and maximum accessibility for operators. Developed for applications requiring strict sanitary standards, it is available in fully wet-cleanable and CIP-compatible versions for reliable, contamination-free operation. Suitable for installation in pneumatic conveying lines or gravity pipes up to 5 barg, the WYK delivers precise product routing and easy maintenance – ideal for food, dairy, pharmaceutical, and other hygiene-critical processes.

MAIN FEATURES

Pressure Range
5 barg (73 psi) system and differential pressure
Operation Temperature
-20°C up to 100°C
Application
Suitable for fluid group 2 according PED
(fluidgroup 1 on demand)
Seal Configuration
Elastomer seal, tight clearances between rotor and housing
Material of Construction
Stainless steel
Surface
Product wetted parts Ra = 0,8 µm

Related Industries

Plastics
Chemicals
Food & Pet Food

WYK Product Sheet

Access the comprehensive product sheet for the WYK diverter valve to review its specifications, features, and operational benefits. Gain the technical insights needed to evaluate its suitability for your application.

PRODUCT SHEET

Designed for hygiene-critical applications with thorough wet cleaning and CIP drainage.

Sanitary, CIP-Cleanable Design for Effortless Cleaning and High Hygiene Standards

The WYK diverter valve stands out with its specially designed sanitary and wet-cleanable CIP version, tailored for hygiene-critical applications. In CIP mode, an enlarged internal gap allows thorough, efficient cleaning, while the integrated drainage pipe ensures complete drainage into the CIP return line. Featuring a single-channel spherical rotor with a 45° outlet in K-Execution, the WYK provides smooth product flow and reliable switching, combining operational efficiency with maximum cleanliness and minimal maintenance.

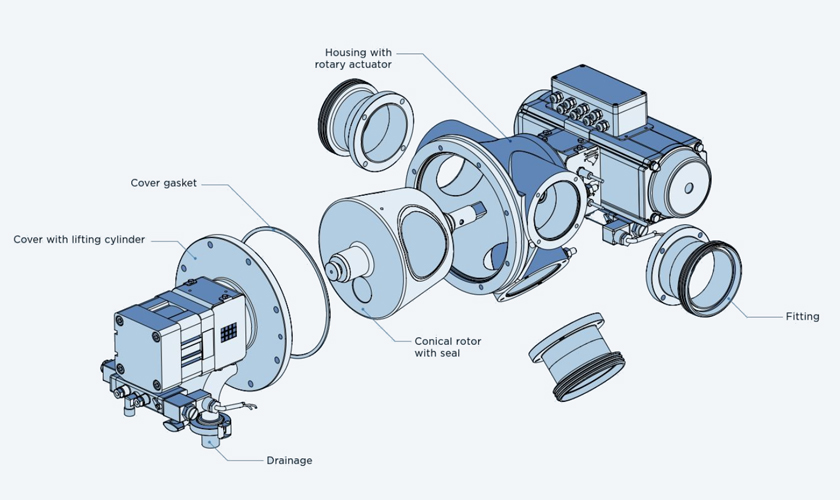

Function principle of WYK diverter valve for CIP cleaning
