Coperion’s original dual-channel diverter valve: Engineered for powders and granulates up to 5 barg.

Coperion’s original dual-channel diverter valve: Engineered for powders and granulates up to 5 barg.

Dual Channel Diverter Valve for Powders and Granular Products

The WZK dual-channel diverter valve combines a proven cylindrical design with pressure-assisted seals to deliver highly reliable product routing for both powders and granular materials. Engineered for installation in pneumatic conveying lines or gravity-fed systems up to 5 barg, it ensures clean switching, minimal leakage and long-term performance even in demanding industrial applications. As Coperion’s original and globally top-selling diverter valve, the WZK sets the benchmark for durability, process safety and operational efficiency.

MAIN FEATURES

  • Pressure Range
    5 barg (73 psi) system and differential pressure
  • Pressure Surge Proof (Optional)
    10 barg (145 psi) due to heavy duty design (on request)
  • Operation Temperature
    -20°C up to 100°C
  • Application
    Suitable for fluid group 2 according PED (fluid group 1 on demand)
  • Seal Configuration
    Pressure assisted seal at each part
  • Material of Construction
    Cast aluminium with stainless steel pipe insert

Related Industries

  • Plastics
  • Chemicals
  • Food & Pet Food
  • Minerals

WZK Product Sheet

Access the comprehensive product sheet for the WEK diverter valve to review its specifications, features, and operational benefits. Gain the technical insights needed to evaluate its suitability for your application.

PRODUCT SHEET

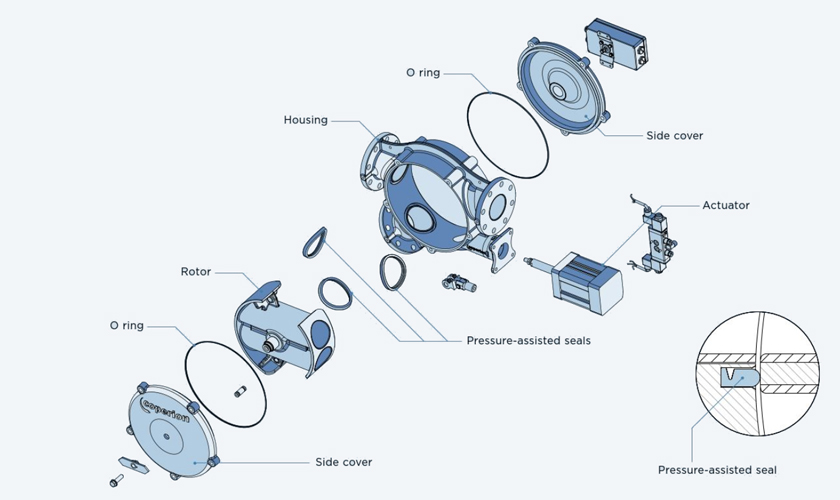

Engineered for durability: minimal seal wear, K-seal technology, and symmetric rotor geometry.

Advanced Wear-Reduction Technology for Maximum Uptime

The WZK’s robustness is rooted in its low-rotation-angle mechanism, which reduces friction and keeps sealing wear to a minimum. Its symmetric turning component enables a 180° repositioning as soon as wear becomes visible, doubling operational service life with minimal intervention. The patented K-seal provides superior sealing reliability between the housing and rotor, while the precisely machined, symmetrical dual-conveyor-channel rotor in K-Execution ensures efficient switching and uninterrupted material handling performance.

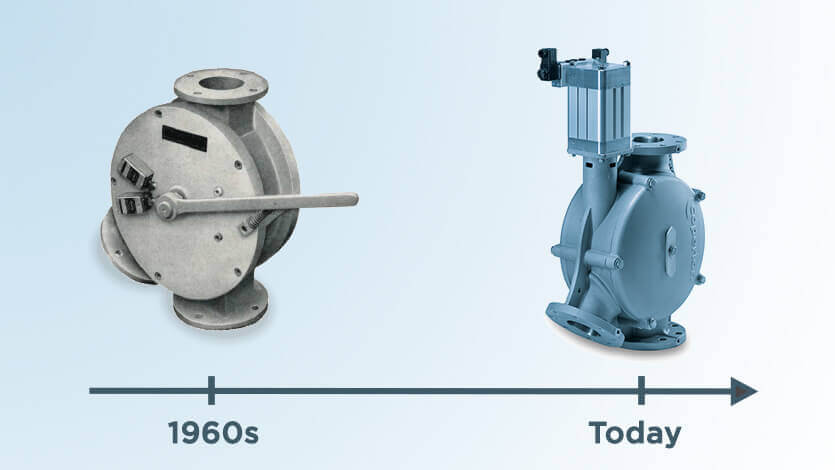

Coperion diverter valve WZK old and new

Why the Original WZK Dual Channel Diverter Valve Remains One of the Best-Sellers to This Day

When the WZK diverter valve was first introduced around 60 years ago it was an immediate success. No wonder the design of the “Original”was copied so many times by other valve manufacturers (unmatched in execution) but yet, still remains one of Coperion‘s best-selling valves. It is proven, reliable, maintenance-friendly and suitable for various conveying systems as well as food applications.

WZK Diverter Valve infographic teaser image

Infographic: The Original WZK Two-Way Diverter Valve from Coperion

As a dual channel diverter valve, it made a name for itself as a reliable component which is used for diverting powders and granular products within a pneumatic conveying system. Thanks to its versatile design and hygienic options, it can be applied in plastics, chemicals, minerals, as well as the food industry. What makes it so successful? Find out in the infographic.
