Rotary Valve ZVH

Download large image

High-pressure discharging valve for granular products

The Rotary Valve ZVH is a high-pressure discharging valve designed specifically for granular products. Engineered to optimize capacity, it features an ideal ratio of rotor volume to inlet cross-section, ensuring efficient material flow. Its unique inlet geometry allows for gentle handling of pellets, minimizing damage and preserving product quality. Additionally, the integrated leakage gas body vent ensures efficient feeding of bulk materials into pneumatic conveying systems at pressures of up to 3.5 barg (51 psi). Experience enhanced performance and reliability with the Rotary Valve ZVH, tailored to meet your material handling needs.

Main features

Pressure range
3.5 barg (51 psi) system and differential pressure
Pressure surge proof
10 barg (145 psi), due to heavy duty design
ATEX (optional)
Usable in Ex-Zones
Inlet for pellets
Anti-chopping inlet geometry (patented) for safe starting below full product column
Low leakage
High pressure rotor with 12 pockets and axial seals

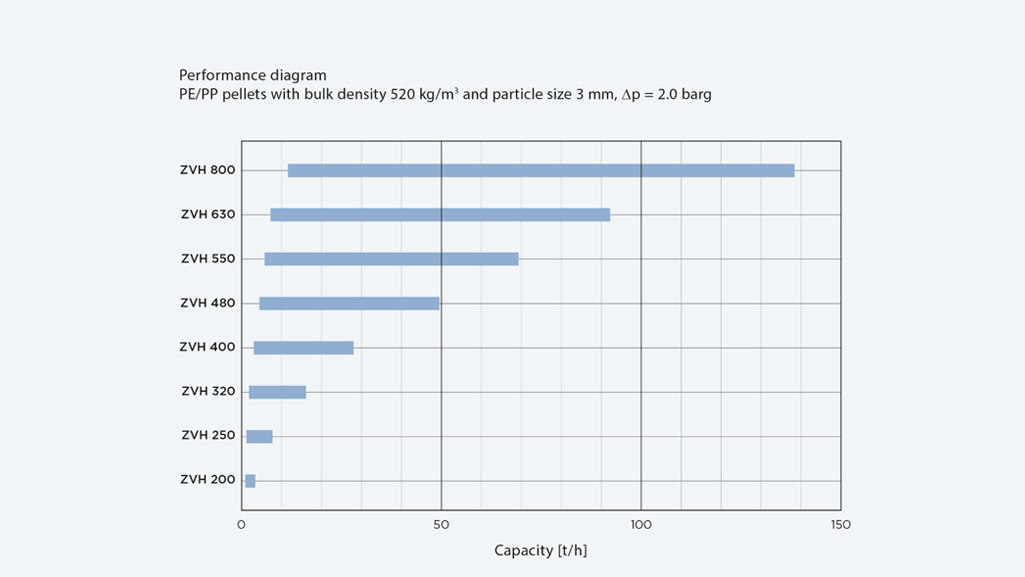

Capacity

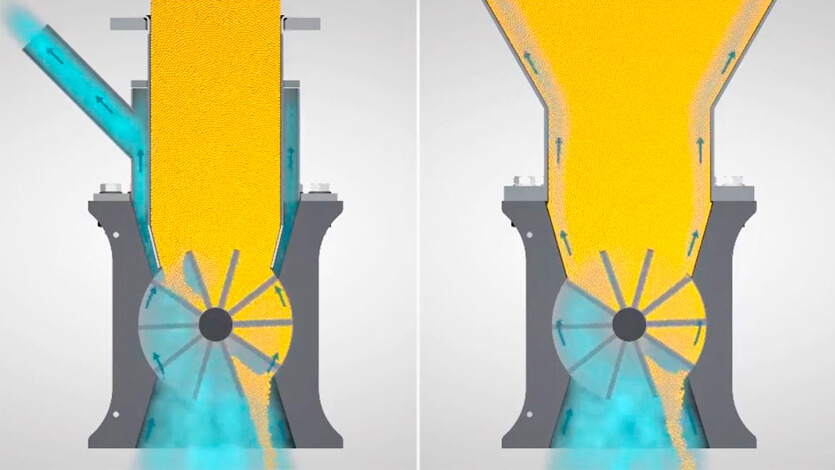

High filling efficiency by internal leakage gas venting

Related Industries

Plastics
Food & Pet Food

ZVH Product Sheet

Access the comprehensive product sheet for the ZVH rotary valve to review its specifications, features, and operational benefits. Gain the technical insights needed to evaluate its suitability for your application.

PRODUCT SHEET

An innovative sealing system and high-pressure H-Rotor design work together to deliver durable, precise, and maintenance-friendly performance.

Innovative Design for Optimal Functionality and Efficiency

The innovative design is complemented by a premium sealing system, which includes a floating sealing cassette and locking gas, further enhanced by a labyrinth ring for optimal performance. The valve's outboard bearings and a dedicated drop-out opening, separate from the product area, facilitate easy detection of gasket failures, ensuring reliability and maintenance efficiency. Additionally, the 12-chamber closed-end H-Rotor is expertly designed for discharging and conveying materials into pneumatic systems at pressures of up to 3.5 bar. The end plates are encircled by a robust ring that serves as the contact surface for a radial seal, reinforcing the ZVH's commitment to durability and precision in operation.
